Voltra Mounts
Custom mounting solutions for Voltra cable attachments.
Table of Contents
- Table of Contents
- Tranman – Low Profile Fixed Mount
- wamoore911 – Belt Squat Stand Mount
- Dr Tatty Waffles – Triple Voltra Bracket
- Ryan – Fixed Voltra Mount
- Ryan & Carter - Bolt together strap Voltra mount

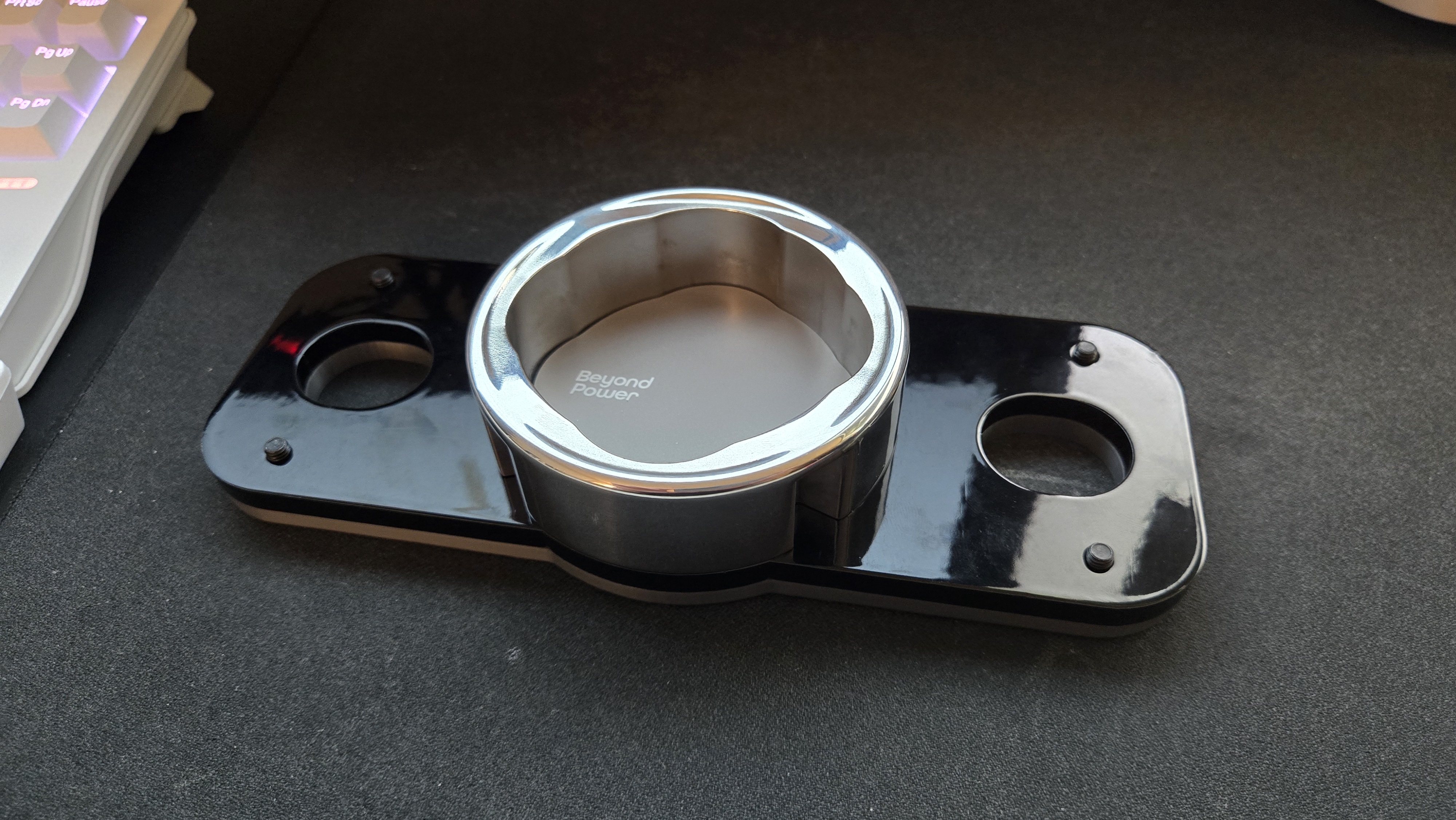

Tranman – Low Profile Fixed Mount
📁 Files
🔧 Specifications
- 304 stainless steel, 0.187" thickness
- Mounting hardware: M5 × 0.8 countersunk hex bolts
- Requires printed shim to match the Voltra housing taper
💰 Cost Reference
- SendCutSend quote: $54.70 for two mounts + shipping
⚠️ Notes
- Voltra can only be mounted in a single orientation because of bolt spacing
- Dry fit with the shim before tightening to avoid twisting the pulley body
📝 Credits
Design by Tranman

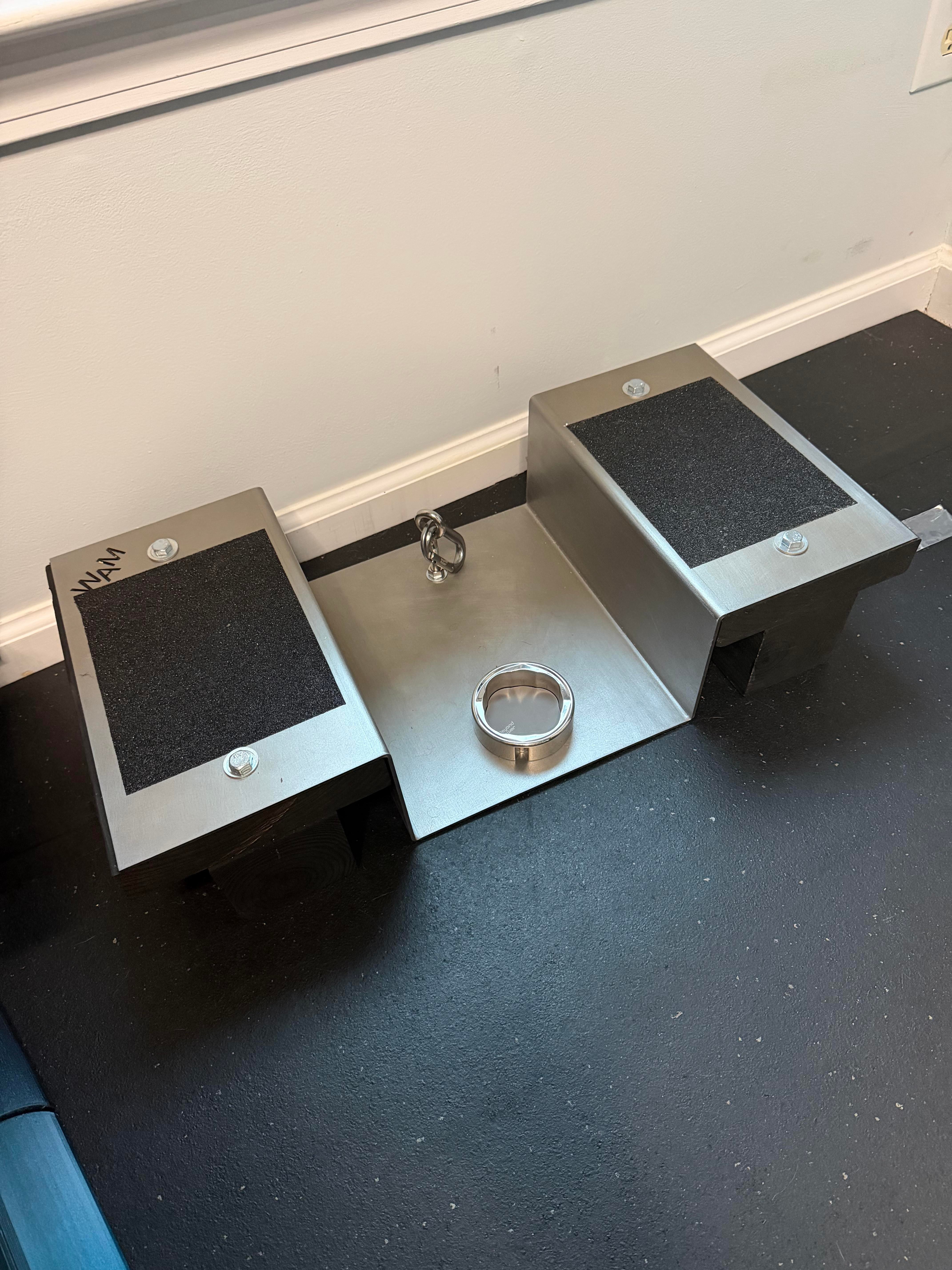

wamoore911 – Belt Squat Stand Mount
📁 Files
- Squat stand DXF
- Build thread on r/BeyondPower
🔧 Specifications
- Base: 2×6 and 4×4 lumber construction
- Mounting plate: SendCutSend steel plate (spec in DXF)
- Finish: Powder coat recommended; clear over polished steel rusts quickly
💡 Build Notes
- Plate is rotated slightly so the pulley centers over the platform
- Add clearance on the floor side to accommodate Voltra screw heads
- Powder coat or paint immediately after polishing to avoid flash rust
📝 Credits
Design by wamoore911

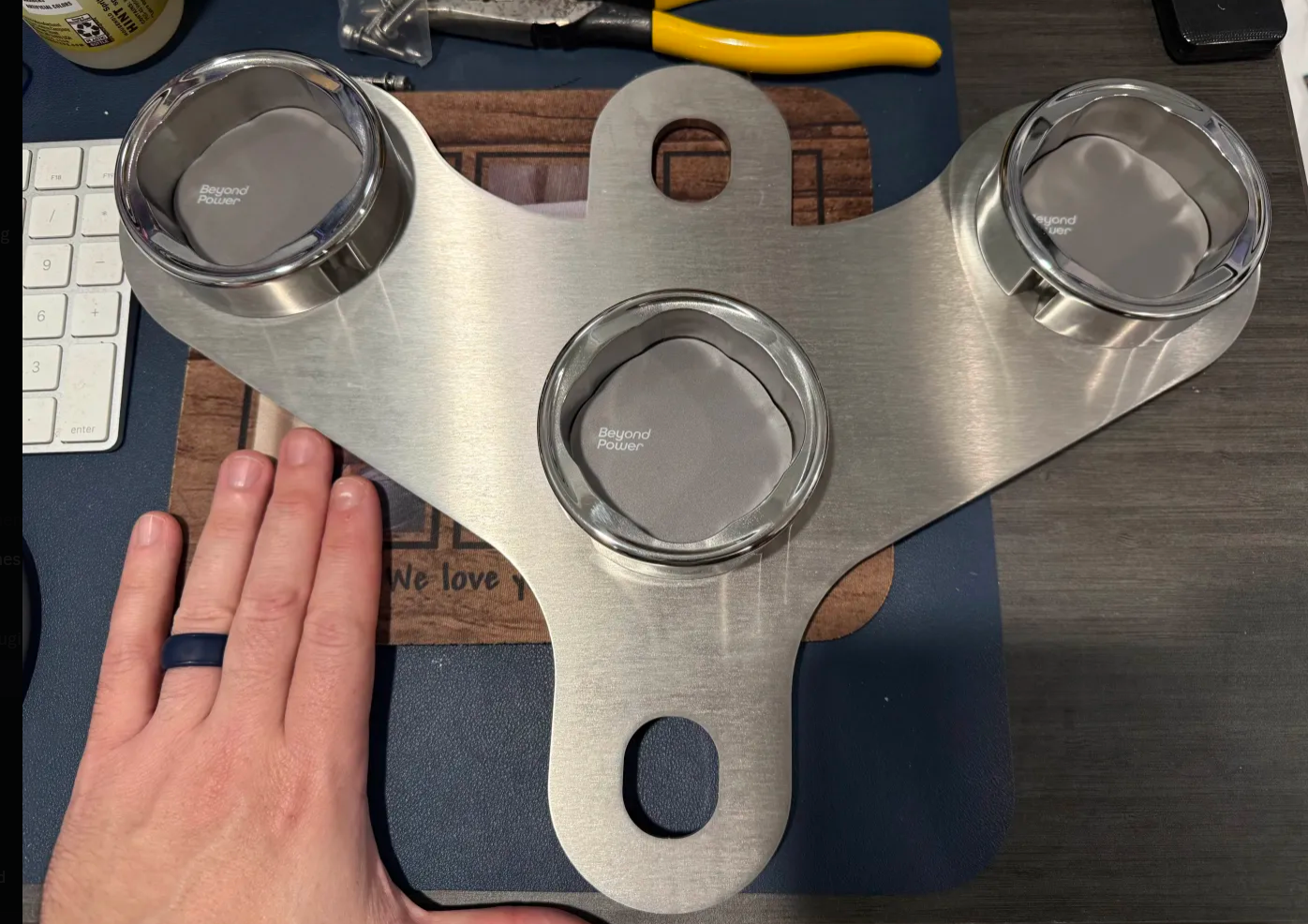

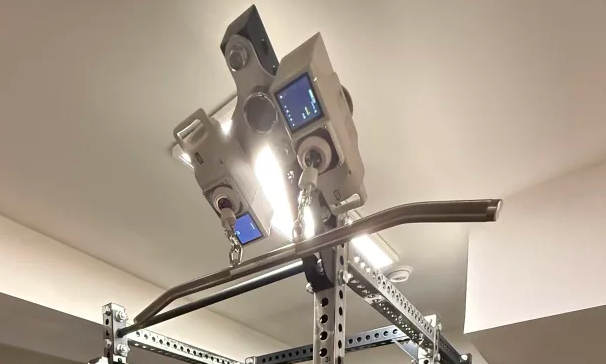

Dr Tatty Waffles – Triple Voltra Bracket
📁 Files
📝 Notes
- Holds three Voltra units simultaneously for fast attachment swaps
- Ideal for pairing high/low pulleys with a central neutral handle
- 4.7 mm stainless steel
📝 Credits
Design by Dr Tatty Waffles

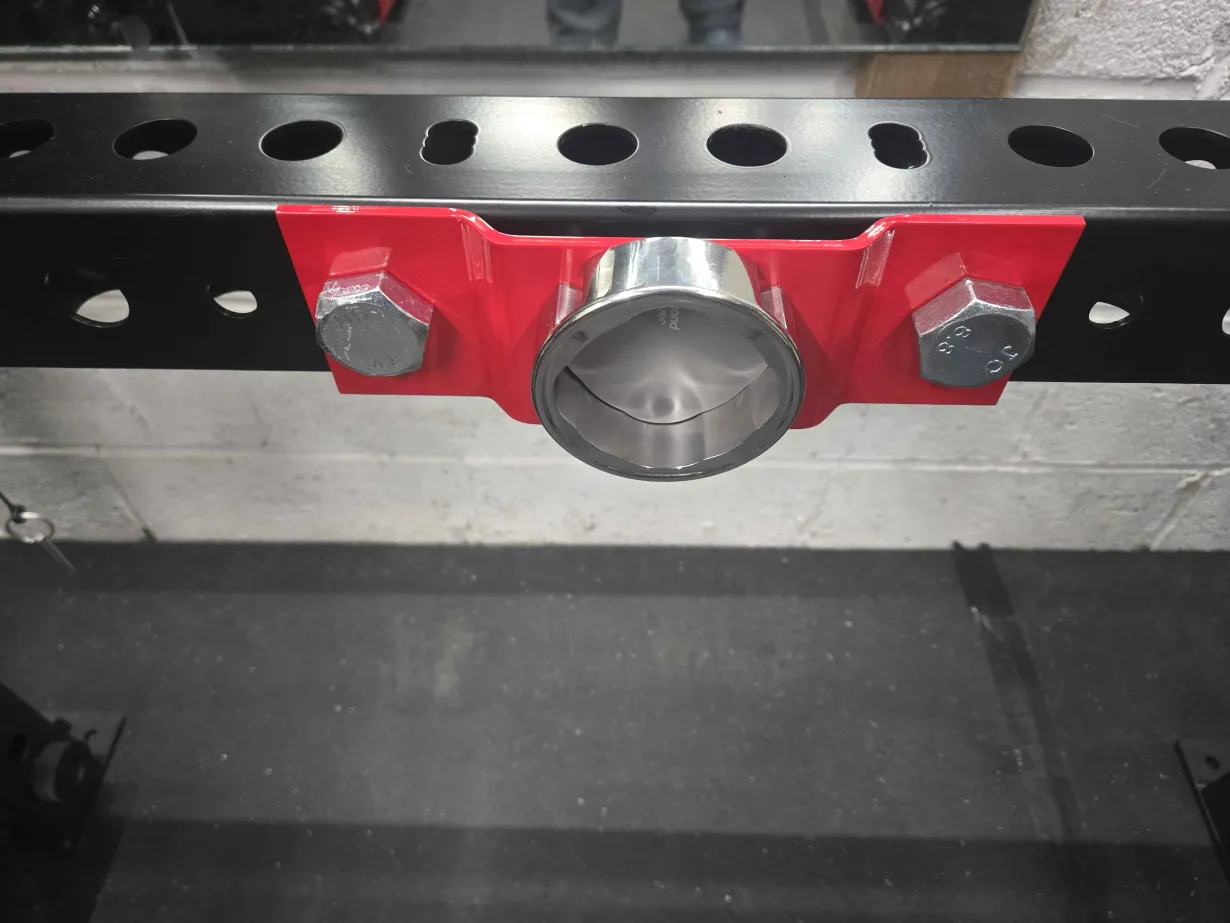

Ryan – Fixed Voltra Mount
📁 Files
🔧 Specifications
- 4.8 mm steel plate (0.189")
- All bends: 50° angles
💰 Cost Reference
- SendCutSend quote: $77.75 for two including bending + shipping
📝 Notes
- Raised mount location to allow multiple mounting configurations
- When ordering from SendCutSend, specify 50° for all bends
- Might be able to use thinner metal than 4.8 mm
📝 Credits
Design by Ryan

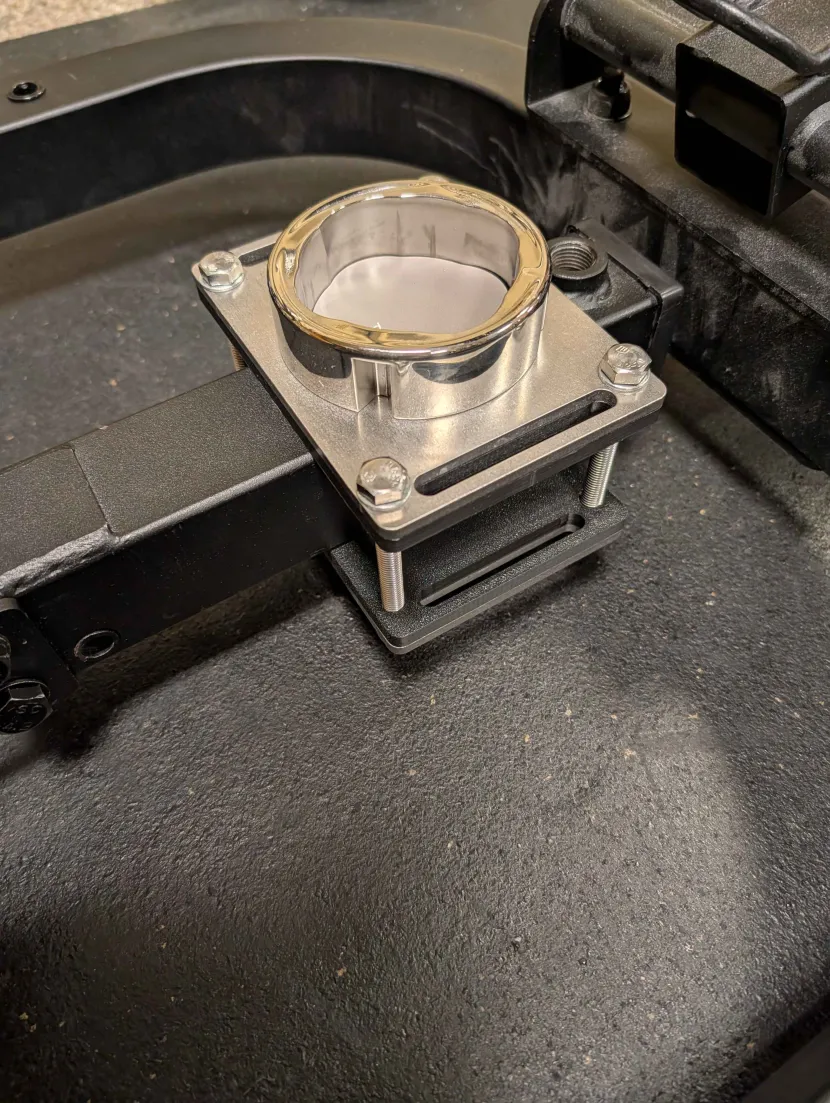

Ryan & Carter - Bolt together strap Voltra mount
📁 Files
🔧 Specifications
- 4.7 mm steel plate in SendCutSend (SCS) (Stainless is fine, but recommend tumble/deburring)
- 10 mm bolts for each corner
- M8 flange bolts for padding threaded to backplate
📝 Credits
Design by Ryan & Carter
