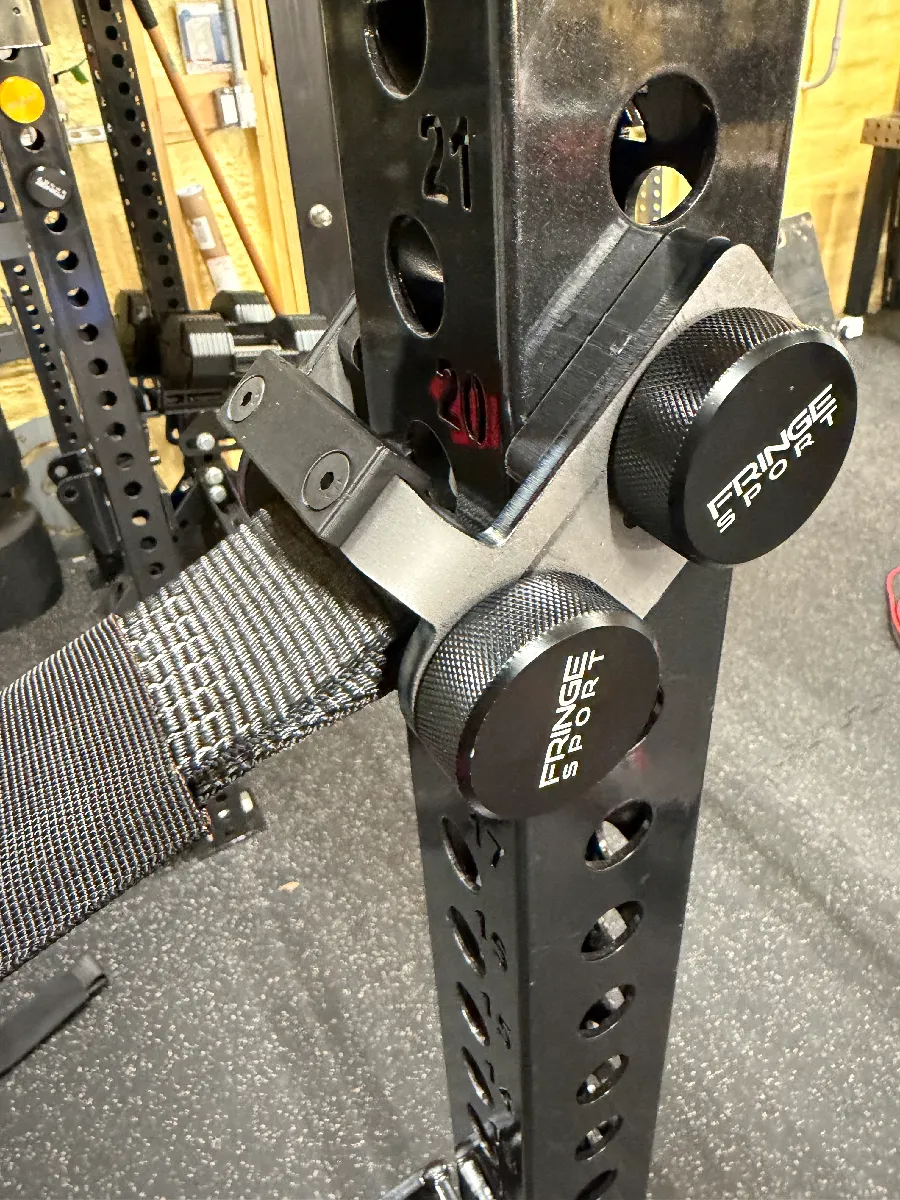

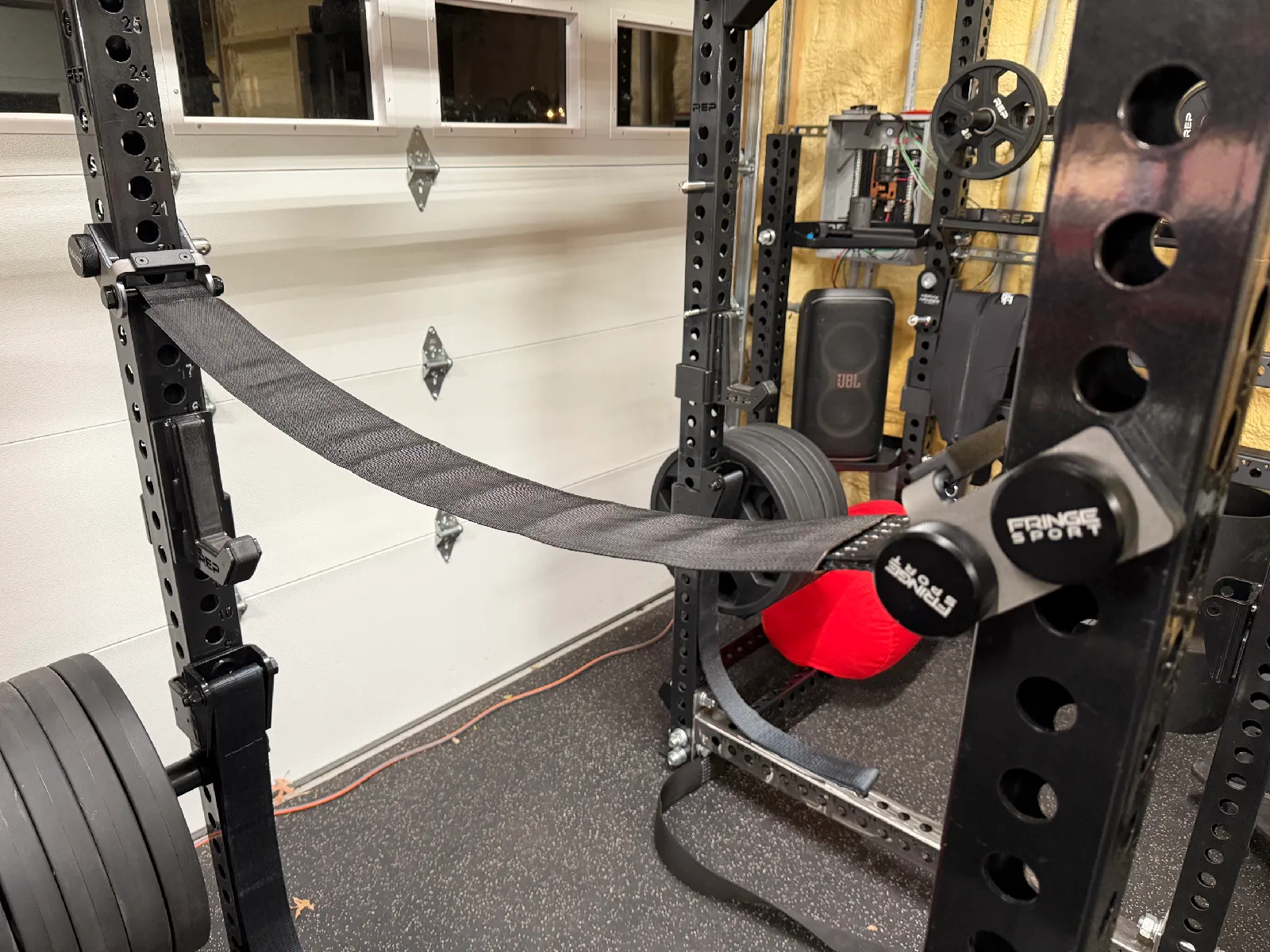

Chaisewhiz – MagStrap Quick-Adjust Strap Safety System
Quick-adjust strap safeties that use mag pins to attach to your rack uprights.
📁 Files
🔧 Specifications & Parts
- Order four brackets from SendCutSend using ¼" A36 HRPO steel (adjust bend radius for stainless)
- Optional SendCutSend tapping service for the ¼-20 holes
- 3D print 4× center protectors and 8× side protectors
- Hardware: 24 × ¼-20 × 5/8" flat-head socket cap screws
- Straps from customtiedowns.com
- Straps search:
35094 - Protectors search:
35093
- Straps search:
🛠️ Assembly
- Mount brackets to the rack using mag pins
- Fasten center and side protectors to the brackets using the socket cap screws
- Install straps and adjust to rack depth/height
⚠️ Notes
- DIY project provided as-is—no formal engineering analysis has been performed
- Inspect hardware regularly and replace straps when frayed
- Use at your own risk (see BSD license)
📝 Credits
Design by Chaisewhiz — Licensed under BSD (see LICENSE)
